Military Aviation

Mobile Filtration Carts

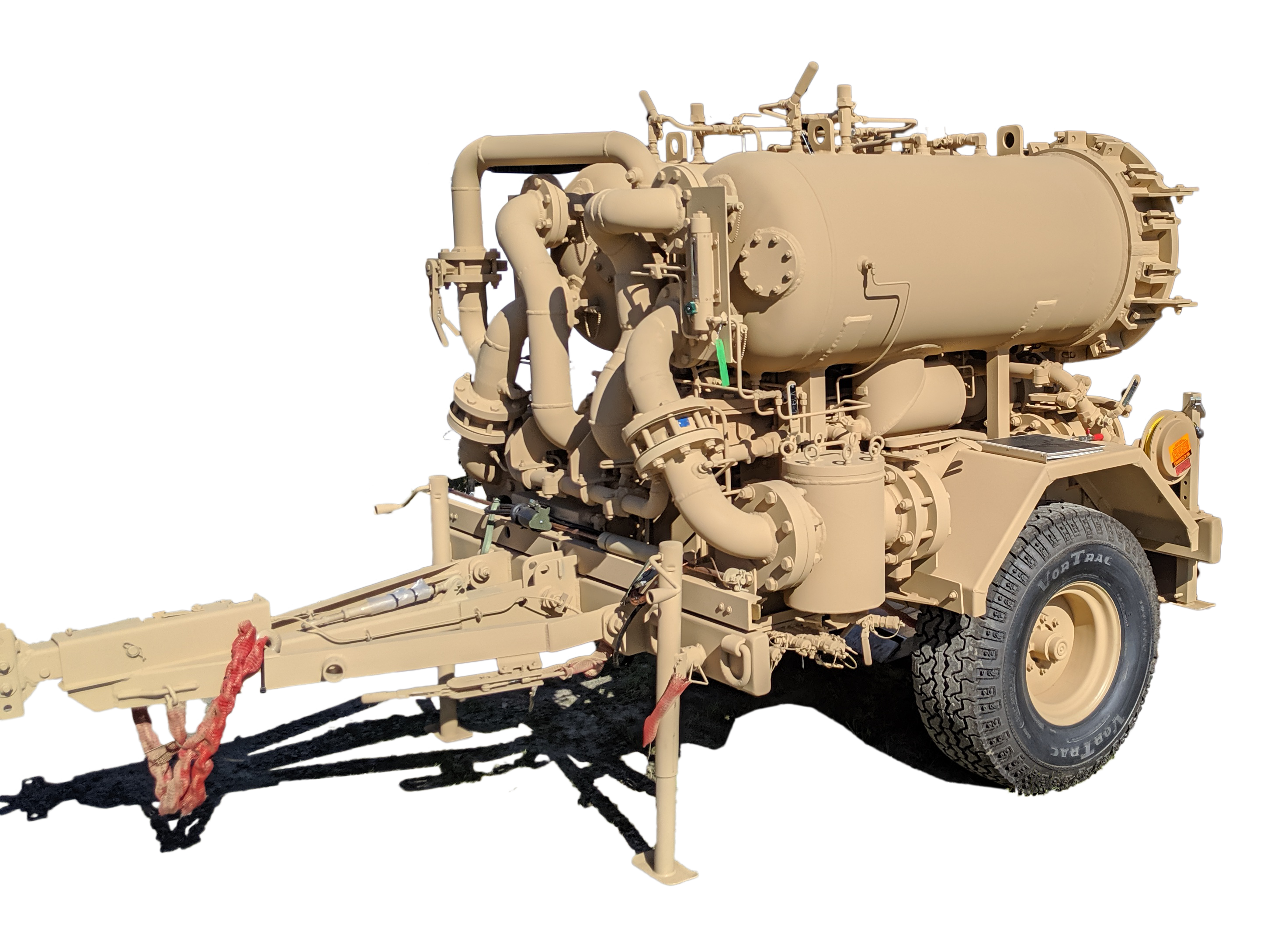

Dual-Filtration Cart

The Dual-Filtration Cart can flow upwards of 1200 GPM or 2x 600 GPM for two separate fuels (JP8 & Diesel). Fits in a Tricon unit for storage and aircraft deployment.  This unit can be used in a disaster situation where the fuel is dirty and is a remote location.  Very easily transported and designed to our standards or reliability.

Key Features:

  • Eight Ways to Filter either JP8, Jet A, or Diesel
  • Able to fit in a Tricon Container.
  • Two Basket Strainers, 4” ANSI Flange, Stainless Steel, 100 Mesh
  • Equipped with (2) 600 GPM Aluminum Filter Water Seperators
  • API 1581, 5th Edition, Category M1581 6th Edition
  • Design Pressure: 215 PSIG
  • Dry Weight: 3400 lbs total
  • Tongue Weight: 400 lbs (3,000 lbs on axles)

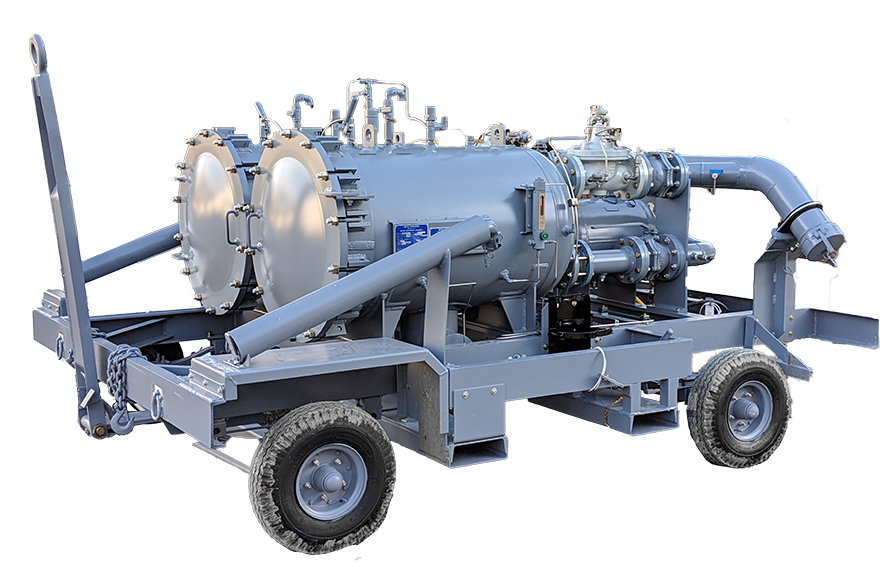

R19 Force Cart

The R19 can flow upwards of 1200 GPM running in parallel or 600 GPM individually.  These are used in high rate fueling in combat situations that call for Fuel filtration.  Very easily transported and designed to our standards or reliability. This cart is part of a 4-piece system R18, R19, R20 and R21.

Key Features:

  • Eight Ways to Filter either JP8, Jet A, or Diesel
  • Equipped with (2) 600 GPM Aluminum Filter Water Seperators
  • API 1581, 5th Edition, Category M1581 6th Edition
  • Each sump has its own evac system that discharges back into the inlet of the Filter Water Separator.
  • Weight of this unit is roughly 3,000 pounds.

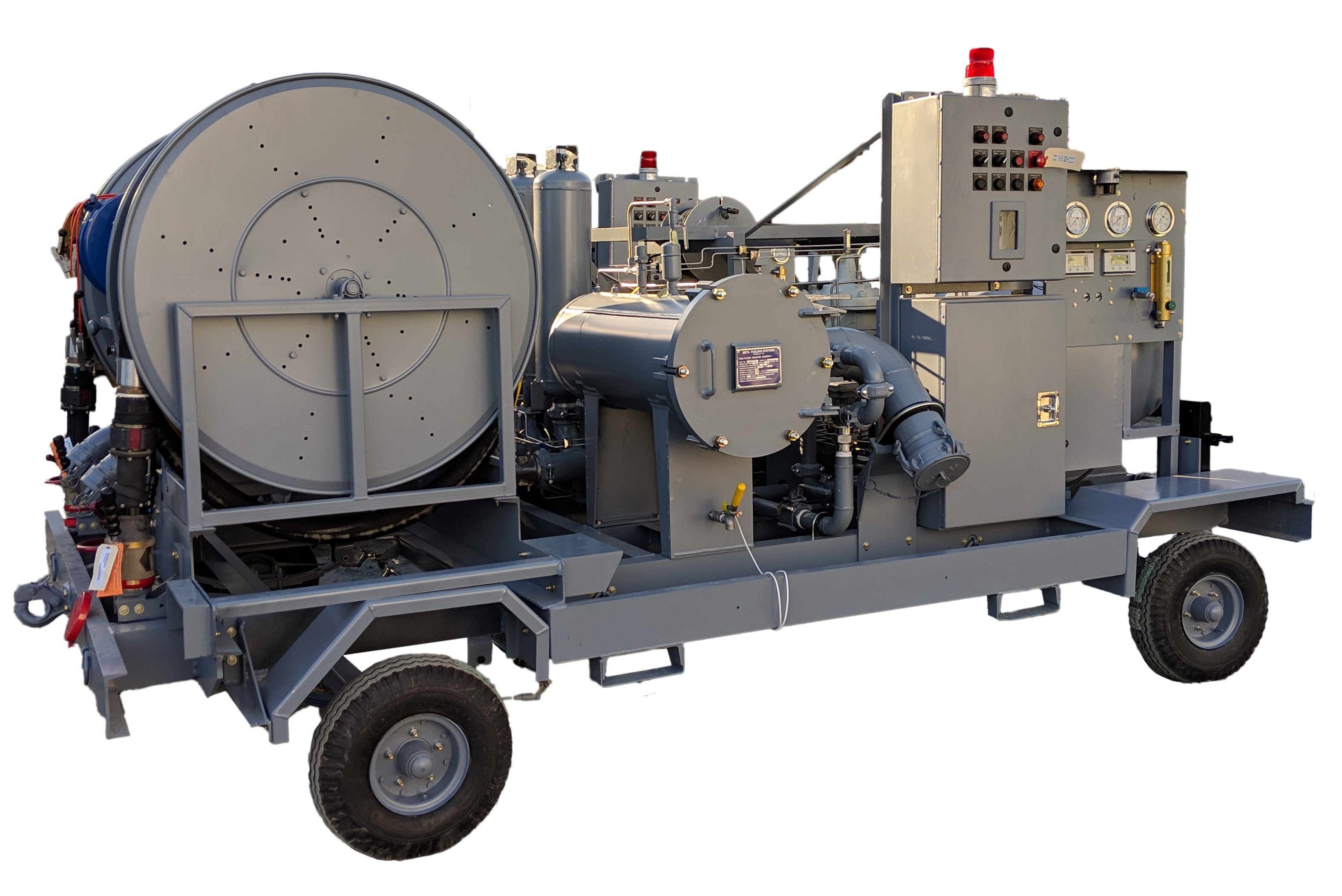

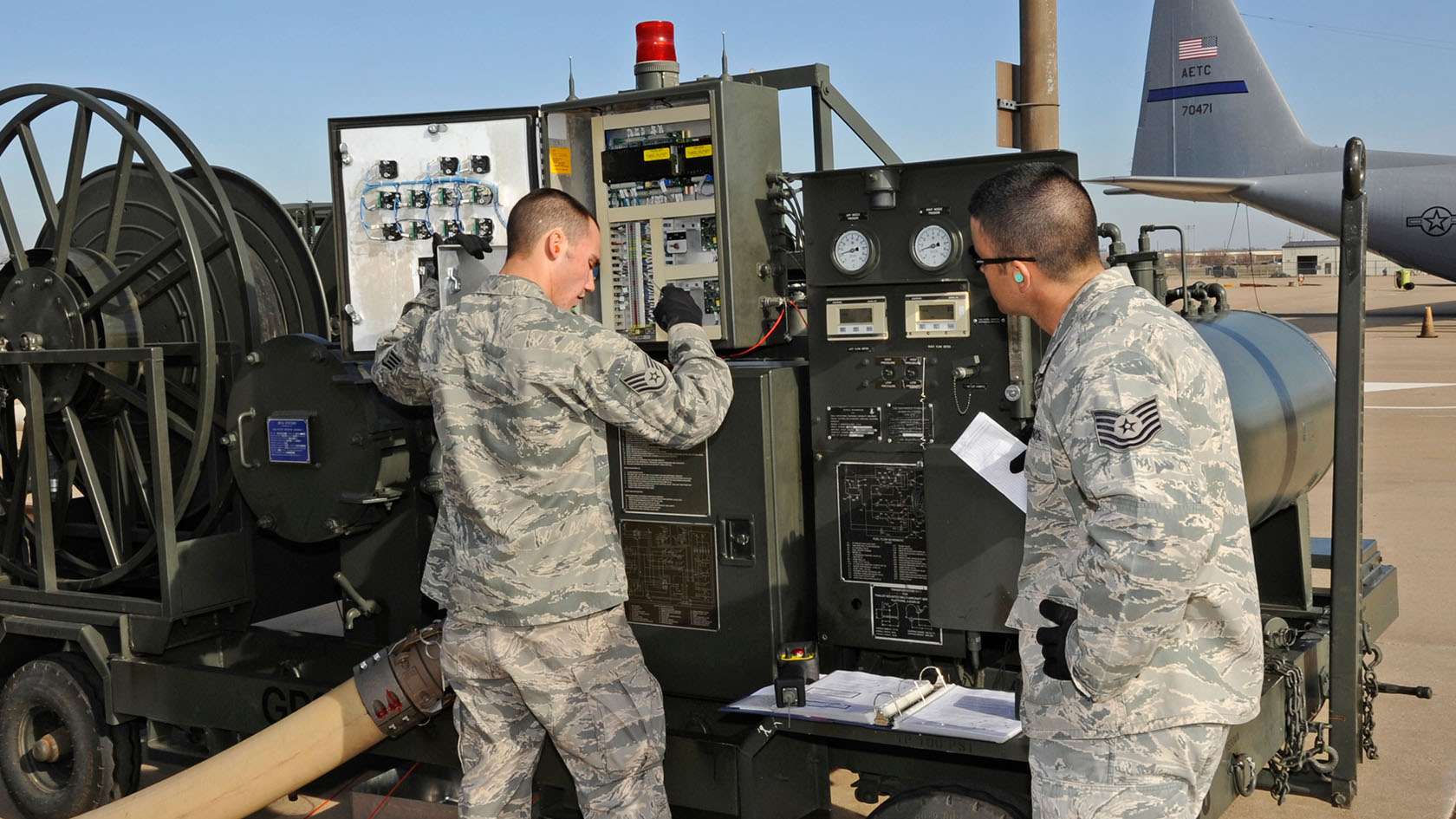

R20 Force Cart

The R20 supplies up to 900 GPM of fuel to two aircrafts and or one aircraft at 600GPM.  The cart also limits nozzle pressure to 50 +/- 5 PSI.  The fuel inlet is a 6″, four-ear, female camlock.  The filter on this unit is a API/IP 1583 aluminum filter monitor rated for 1000 GPM.  This cart is part of a 4-piece system R18, R19, R20 and R21.

Key Features:

  • Filter either JP8, Jet A, or Diesel
  • Automated Data Capture system for collection of billing data,
    and discharge hose and reel.
  • Electronically operated hose reels with 60 ft of API 1529 hose.
  • Equiped with a single 1000 GPM Filter Monitor
  • Weighs roughly 4,000 pounds.
